Common Problems in Cyclone Separators and How to Fix Them

Cyclone separators are a critical component in industrial dust collection, chemical processing, cement plants, mining, and food & beverage industries. These devices remove particulate matter from air or gas streams, ensuring environmental compliance, equipment protection, and process efficiency.

While cyclone separators are valued for high dust collection efficiency, low maintenance, and continuous operation, they are not immune to operational challenges. Common issues include reduced separation efficiency, excessive pressure drop, particle re-entrainment, erosion, moisture accumulation, vibration, and corrosion.

Understanding these problems, their root causes, and practical solutions ensures reliable operation, longer equipment life, and minimal downtime.

What is a Cyclone Separator?

A cyclone separator  is a gas-solid separation device that relies on centrifugal forces to separate particulate matter from a gas stream. Gas or air enters the separator tangentially, creating a vortex flow. The centrifugal force pushes heavier particles toward the walls, where they slide down into a collection hopper, while cleaned air exits from the top.

Types of Cyclone Separators

1. High-Efficiency      Cyclone

• Designed to       capture fine particulate matter (<10 μm).

• Often used       in cement, power, and chemical industries for high dust removal       efficiency.

2. Tangential      Inlet Cyclone

• Standard       design with a tangential entry to create a vortex.

• Offers good       efficiency for medium-sized particles and easy installation.

3. Reverse-Flow      Cyclone

• Air exits       from the center top, improving efficiency for fine and       low-density particles.

• Common in chemical       processing and food industries.

4. Multi-Cyclone      System

• Array of       small cyclones arranged in parallel.

• Suitable       for high-capacity industrial dust collection and minimizing space.

Materials & Construction

• Stainless      Steel Cyclone: Resistant to corrosion and suitable for      chemical and food processing.

• Carbon Steel      Cyclone:      Economical and widely used in cement, mining, and general industrial      applications.

• Industrial-Grade      Cyclone:      Heavy-duty construction for harsh environments.

• Vertical      Cyclone Separator: Standard orientation ensuring gravitational      particle settling and efficient dust collection.

• Wear-Resistant      Liners:      Protect cyclone walls from erosion due to abrasive particles.

Common Problems in Cyclone Separators

1. Reduced Separation Efficiency

Symptoms: Dust escaping through the outlet, poor particulate collection.

Causes:

• Incorrect      cyclone sizing relative to airflow and particle load.

• High inlet      velocity causing particle re-entrainment.

• Damaged or      worn cyclone walls or liners.

• Overloading      due to dust load exceeding design capacity.

Solutions:

• Inspect and      replace wear-resistant liners.

• Adjust inlet      velocity to match design specifications.

• Install pre-separators      to remove large or dense particles before the main cyclone.

• Ensure vortex      finder and inlet geometry are functioning correctly.

2. Excessive Pressure Drop

Symptoms: High energy consumption, reduced airflow, strain on fans or blowers.

Causes:

• Blockages in      the inlet, outlet, or hopper discharge.

• Accumulated      dust reducing internal cross-section.

• Sharp bends      in ducting creating turbulence.

Solutions:

• Implement a regular      cyclone cleaning schedule.

• Inspect for      and remove dust accumulation in hoppers and ducts.

• Optimize      ducting design to reduce pressure loss and turbulence.

• Verify that cyclone      dimensions and flow rates comply with design standards.

3. Particle Re-Entrainment

Symptoms: Dust particles leaving the cyclone outlet, contamination downstream.

Causes:

• Vortex      finder too short or improperly positioned.

• High outlet      velocity lifting settled particles.

• Hopper slope      insufficient to move settled dust.

Solutions:

• Extend or      adjust vortex finder length.

• Reduce outlet      velocity or use flow diffusers.

• Modify      hopper design to facilitate continuous particle discharge.

4. Erosion and Wear

Symptoms: Thinning of walls, holes in liners, shorter equipment life.

Causes:

• High-velocity      abrasive dust impacting cyclone walls.

• Inappropriate      material for application.

• Excessive      turbulence in the cyclone vortex.

Solutions:

• Replace or      upgrade wear-resistant liners regularly.

• Use ceramic      or alloy coatings for high-abrasion applications.

• Maintain      operating velocity within design limits.

5. Moisture Accumulation

Symptoms: Sticky dust clogging the cyclone, reduced efficiency.

Causes:

• Humid or      steam-laden gases.

• Dust      particles with moisture content not suitable for dry separation.

Solutions:

• Install pre-dryers      or air heaters to reduce moisture.

• Consider wet      scrubbers for high-moisture applications.

• Design      hopper and discharge to handle sticky particulate matter.

6. Vibration and Noise

Symptoms: Rattling, shaking, or high noise levels.

Causes:

• Improper      mounting or misalignment.

• Uneven dust      load causing imbalance.

• Gas      pulsations or surges in ductwork.

Solutions:

• Secure mounting      structures and support brackets.

• Balance particle      load to avoid asymmetric flow.

• Install dampers      or pulsation attenuators to smooth airflow.

7. Corrosion

Symptoms: Rusting, weakened walls, reduced lifespan.

Causes:

• Exposure to      acidic or reactive gases.

• Incorrect      material selection for the process environment.

Solutions:

• Select stainless      steel or corrosion-resistant alloys.

• Apply protective      coatings or linings.

• Inspect      regularly for corrosion and repair immediately.

Maintenance Best Practices

Cyclone Separator Inspection

• Check for liner      wear and wall thinning.

• Inspect inlet,      outlet, and hopper geometry.

• Ensure      discharge valves and collection hoppers operate correctly.

Cleaning & Erosion Prevention

• Follow a scheduled      cleaning guide to remove accumulated dust.

• Replace wear-resistant      liners before significant erosion occurs.

• Monitor operating      velocities and particle size distribution to reduce wear.

Troubleshooting Low Efficiency

• Verify particle      size distribution against cyclone design.

• Inspect vortex      finder, inlet tangential entry, and hopper slope.

• Check for duct      leaks, blockages, or improper flow rates.

Also inspect connected pump components including seals, shaft sleeves, and the bearing isolator to prevent dust ingress and ensure long-term equipment reliability.

Table: Common Cyclone Separator Problems and Solutions

Conclusion

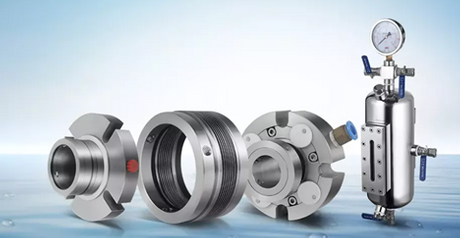

When cyclone separators operate alongside heavy-duty pumping systems, it’s essential to ensure compatibility across rotating equipment. Using high-performance sealing solutions such as Gorman Rupp seals, Mission pump seals, and API-compliant mechanical seals prevents leakage, abrasive wear, and unplanned shutdowns — especially in mining, slurry handling, and chemical processing environments.

A properly engineered cyclone–pump sealing system not only improves equipment reliability and MTBF (Mean Time Between Failure), but also enhances plant efficiency, worker safety, and environmental compliance.

At TDS Fluid, we provide industrial-grade cyclone separators, wear-resistant liners, and maintenance solutions for power plants, cement, chemical, mining, and food industries.

Explore Cyclone Separator Solutions or contact our experts to optimize your system and reduce downtime today.

FAQs

Q1. Why is my cyclone separator efficiency dropping?
Efficiency drops due to worn liners, improper inlet velocity, or overloading. Inspect components and adjust operating conditions.

Q2. How often should cyclone liners be replaced?
Depends on dust abrasiveness and operating conditions; typically every 6–12 months in high-abrasion applications.

Q3. Can cyclone separators handle wet dust?
Dry cyclones are not ideal for wet dust. Use pre-dryers, air heaters, or wet scrubbers for high-moisture applications.

Q4. How do I reduce pressure drop?
Clean regularly, optimize ducting, and verify that inlet/outlet sizing meets design specifications.

Q5. What materials are best for cyclone construction?

• Stainless      steel:      Chemical, pharmaceutical, and food industries

• Carbon      steel:      General industrial applications

• Alloy or      ceramic-coated: High-abrasion dust
