ANSI Pump Overview: Industrial ANSI B73.1 Centrifugal Pump Standards and Applications
An ANSI pump (ANSI B73.1 centrifugal pump) is a standardized industrial pump widely used in chemical processing and fluid handling applications. In many industries, inconsistent pump designs and frequent failures can lead to costly downtime, higher maintenance costs, and operational inefficiencies. ANSI process pumps address these challenges by offering a reliable, interchangeable, and performance-driven solution.
Designed according to ANSI B73.1 standards, these industrial centrifugal pumps are built for dimensional interchangeability across manufacturers. This makes maintenance, part replacement, system upgrades, and integration much easier. Available in a wide range of pump sizes, These pumps offer flexibility for different flow rates and operational requirements. Unlike non-standard pumps, they provide consistency, compatibility, and long-term reliability.
Widely used in industries such as chemical processing, oil and gas, pharmaceuticals, and food production, ANSI process pumps play a critical role in safe and efficient fluid transfer. Their standardized design also helps reduce downtime and simplify inventory management for spare parts.
In this guide, we’ll explain what an ANSI process pump is, how ANSI B73.1 standards work, and the key applications and benefits of these pumps in industrial operations. By the end, you’ll understand why ANSI Process pumps continue to be a preferred choice for modern process industries.
What Is an ANSI Pump? Understanding ANSI B73.1 Chemical Process Pumps
An ANSI pump is a single-stage, end-suction, centrifugal pump designed according to ANSI B73.1M standards. The purpose of these standards is to create a common platform, ensuring dimensional interchangeability among different manufacturers.
Key characteristics and features
Standardized dimensions
ANSI B73.1 pump adhere to standards like ASME B73.1, which dictates dimensions such as the location of mounting bolts, the height of the centerline, and the size and location of suction and discharge flanges. This ensures that parts from different manufacturers are interchangeable.
Versatile applications
They are commonly used for transferring thin fluids like water and alcohols, but can be constructed from various materials to handle corrosive fluids, higher temperatures, and even some solids depending on the impeller type.
Ease of maintenance
The standardized design makes them easier to repair and maintain. The pump can often be accessed without having to fully disassemble the motor.
Performance standards
ANSI standards include requirements for aspects like bearing life, shaft deflection, and vibration to ensure longevity and reliability.
Interchangeability
A primary benefit is the ability to replace a pump with one from another manufacturer without having to modify the existing piping or baseplate.
Typical design
Most ANSI Process pumps are single-stage, end-suction centrifugal pumps.
Key Specifications:
Dimensional Standardization
Same footprint and shaft height across brands.
Ease of Maintenance
Interchangeable parts simplify repairs and replacements.
Corrosion Resistance
Built to handle aggressive chemicals.
Flow Rates and Heads
Typically designed for medium-flow, medium-head applications.
Main Components of an ANSI Process Pump: Impeller, Shaft, Seal Chamber & Bearing Housing Design
Component | Description |
|---|
Casing | Usually made of stainless steel or other corrosion-resistant alloys. |
Impeller | Designed for high efficiency and minimal maintenance. |
Shaft and Bearings | Engineered for optimal load distribution. |
Seal Chamber | Compatible with various mechanical seal configurations. |
ANSI Process Pump Dimensional Standards (ANSI B73.1 Specifications Table for Interchangeability)
Include nozzle size, discharge location, and frame type:
Standard | Footprint | Nozzle Orientation | Shaft Height | Back Pull-Out |
ANSI/ASME B73.1 | Standardized | End suction / top discharge | Fixed across brands | Yes ✅ |
Types of ANSI Process Pumps: End-Suction, Horizontal Centrifugal & Chemical Process Pumps
Type |
| Standard Code | Use Case |
Horizontal End-Suction (OH1) |
| ANSI B73.1 | Chemical & process industries |
Vertical Inline |
| ANSI Compliant configurations | Space-constrained systems |
Magnetically Driven ANSI Process Pumps |
| ANSI B73.1M | Leak-free toxic chemical transfer |
ANSI Process Pump Applications in Chemical Processing, Oil & Gas, and Industrial Manufacturing
American National Standards Institute pumps are standardized end-suction centrifugal pumps widely used in industrial processes where consistency, durability, and interchangeability are critical. Built to meet ANSI B73.1 standards, these pumps ensure dimensional uniformity and reliable performance, making them a top choice for a wide range of demanding applications.
Industries That Rely on ANSI Process Pumps
Industrial ANSI B73.1 pumps are specifically intended for:
Industry | Application of ANSI Process Pumps |
|---|
Chemical Processing Plants | Used to transfer highly corrosive and abrasive fluids like acids, caustics, and solvents. Standardized design ensures safety, compatibility, and easy maintenance for continuous and hazardous operations. |
Pharmaceutical Manufacturing | Ensures hygienic fluid handling while adhering to regulatory standards; used for metering, blending, and transferring active pharmaceutical ingredients (APIs) and solvents. |
Pulp and Paper Industries | Handles aggressive chemicals in bleaching, sizing, and pulping processes; designed for fibrous slurries and viscous fluids with minimal clogging and wear. |
Food and Beverage Production | Transfers flavoring agents, cleaning solutions, and other materials; stainless-steel construction ensures hygiene and durability in handling viscous or abrasive fluids. |
Water Treatment Facilities | Manages chemicals like alum, chlorine, and lime during purification; offers corrosion resistance and reliable performance for smooth, continuous water and wastewater treatment operations. |
Fluids Commonly Handled by ANSI Process Pumps
These pumps are designed to handle a wide range of industrial liquids, including:
| Type of Industrial Liquid | Examples and Typical Applications |
|---|
| Acids | Sulfuric, hydrochloric, nitric, and phosphoric acids used in chemical processing, mining, and metallurgy. |
| Bases | Sodium hydroxide, potassium hydroxide, and ammonia used in neutralization and cleaning processes. |
| Solvents | Toluene, acetone, and ethanol commonly used in chemical manufacturing, paint production, and ink industries. |
| Slurries | Liquid-solid mixtures found in the paper industry, mining operations, and wastewater treatment plants. |
| Viscous Liquids | Thick fluids like syrups, oils, latex, and polymers used in food production, rubber processing, |
Key Benefits of ANSI Process Pumps: Interchangeability, Reliability & Cost-Effective Maintenance
Benefit | Overview |
Standardization for Easy Replacement | ANSI B73.1 standards enable seamless pump interchangeability. Components from different manufacturers can be swapped without major system changes, reducing downtime and simplifying maintenance. |
Corrosion and Wear Resistance | Constructed from stainless steel, Hastelloy, or other corrosion-resistant materials, These pumps perform reliably in highly corrosive environments, extending service life and ensuring safe operation. |
Energy Efficiency | Hydraulic design with optimized flow paths and minimal internal losses reduces energy consumption, essential for continuous 24/7 operations. |
Reduced Maintenance Costs | Fewer moving parts and standardized construction make servicing easier, lowering repair costs and minimizing reliance on specialized tools or technicians. |
Versatility Across Applications | Suitable for a wide range of flow rates and pressures—from precise metering to high-volume transfer—making these pumps ideal for light-duty and heavy-duty operations alike. |
These pumps provide reliable performance across diverse industries, from chemical processing to water treatment.
ANSI Pump vs API Pump: Differences Between ANSI B73.1 and API 610 Pump Standards
When selecting a pump for industrial use, one common question is:
What’s the difference between an ANSI centrifugal pump and an API pump?
While both are used in demanding applications, they serve different industries and are built to different standards. Here's a side-by-side comparison:
Feature | ANSI Process Pump (ANSI B73.1) | API Pump (API 610) |
Standard Organization | American National Standards Institute (ANSI) | American Petroleum Institute (API) |
Primary Use | General chemical processing and industrial applications | Oil & gas, petrochemical, and refinery applications |
Design Focus | Standardization, easy interchangeability, cost-effectiveness | High reliability, durability, and safety in hazardous environments |
Operating Pressure & Temp. | Moderate (up to ~300 PSI, 500°F) | High (up to ~1500 PSI, 800°F or more) |
Materials | Cast iron, 316 SS, alloy steel | High-grade stainless steel, duplex, or exotic alloys |
Seal & Bearing Design | Simplified, standard mechanical seals | Engineered, API-specified seals and bearing assemblies |
Mounting | Horizontal, end suction, back pull-out | Horizontal/vertical configurations with heavy-duty bases |
Cost | Lower (more cost-efficient) | Higher (engineered for harsh conditions and reliability) |
Maintenance | Easier to maintain, standardized parts | More complex, but designed for minimal downtime |
Typical Applications | Water treatment, chemical plants, food processing | Refineries, offshore rigs, petrochemical plants |
Which One Should You Choose?
· Choose an ANSI process pump if you're in chemical processing, water treatment, or general industrial operations where cost-efficiency and standardization are priorities.
· Choose an API pump if you're operating in hazardous, high-pressure environments like oil and gas, and need maximum reliability and compliance with strict industry safety standards.
When selecting between ANSI and API pumps, also consider the long-term maintenance requirements and compatibility with your existing equipment. These pumps offer easier interchangeability and lower lifecycle costs, while API pumps provide enhanced durability and tighter tolerances for demanding applications. Evaluating factors like fluid type, operating conditions, safety priorities, and total cost of ownership will help ensure you choose the most efficient and reliable option for your system.
Specialized Pump Configurations: Expert Insights for Industrial Applications
Decades of Experience in ANSI Process Pump Engineering and Process System Design
Industrial professionals understand that pump configurations must be tailored to specific operational needs to maximize efficiency and safety. Based on extensive field experience, these specialized pumps are engineered to meet the demands of challenging environments.
Engineered with Proven Expertise
Depending on application requirements, these pumps can be customized with advanced features such as:

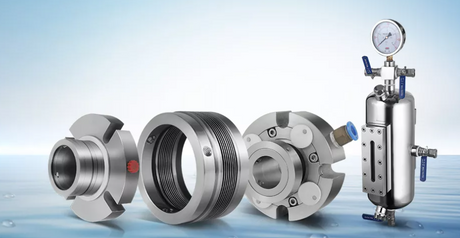

✅ Mechanical Seals — Essential for leak prevention, especially in hazardous and high-risk processing environments.
✅ Jacketed Casings — Ideal for maintaining fluid temperature during complex chemical or thermal processing tasks.
✅ Flush Plans — Designed to manage solid particles and prevent costly seal damage, reducing downtime.
✅ Vertical Configurations — Optimal for plants with limited floor space, offering a compact footprint without compromising performance.
Trusted ANSI Process Pump Solutions for Critical Industrial Applications
Trusted by engineers across chemical processing, water treatment, and oil & gas sectors, these pumps consistently deliver superior performance in handling aggressive and corrosive fluids. The standardized design ensures easy integration into existing systems, while robust durability reduces maintenance frequency and costs.
Technical Expertise in Industrial Centrifugal Pump Selection & Support
With decades of engineering advancements and practical deployments, these pump solutions stand as a reliable choice for modern industrial infrastructure—empowering plants to operate safely, efficiently, and with reduced operational risks.
When Not to Use an ANSI Pump?
While these pumps offer numerous benefits, they are not suitable for every application. For instance, processes involving high-viscosity fluids such as sludge, slurries, or heavy oils can strain the pump’s performance and cause premature wear. Similarly, applications that require extremely high pressures or temperatures—such as boiler feed systems or petrochemical refining—may exceed the operating limits of a standard ANSI design. In such scenarios, multistage centrifugal pumps, reciprocating pumps, or API 610 pumps may be better alternatives. Understanding these limitations ensures optimal pump selection and long-term reliability in critical applications.
Smart Monitoring and Industry 4.0 in ANSI Chemical Pumps
ANSI B73.1 chemical pumps are increasingly integrated with Industry 4.0 technologies to improve performance visibility and proactive maintenance. Smart sensors can continuously monitor key parameters such as vibration, bearing temperature, seal condition, and fluid flow. This data is fed into IoT platforms or predictive maintenance software that alerts operators to potential failures—often before they impact production. By leveraging real-time analytics, facilities can shift from reactive repairs to planned maintenance, reducing downtime and extending the life of pump components. This smart approach aligns with digital transformation trends in manufacturing and process industries.
Why Choose an ANSI Centrifugal Pump for Chemical and Industrial Process Applications
ANSI centrifugal pumps are widely used in chemical processing, oil & gas, water treatment, and industrial fluid handling systems because of their standardized design, durability, and efficient performance. Built according to ANSI B73.1 pump standards, these centrifugal pumps deliver reliable operation in demanding process environments.
- Standardized Interchangeability for ANSI Chemical Process Pumps
ANSI centrifugal pump follow standardized dimensions, allowing easy replacement between different manufacturers without modifying piping systems or baseplates, simplifying maintenance and spare parts management.
- Corrosion Resistance for Aggressive Chemical Handling
These pumps are typically made from stainless steel, ductile iron, or corrosion-resistant alloys, making them suitable for chemical plants, pharmaceuticals, food processing, and wastewater treatment.
- Reduced Downtime with Back Pull-Out Pump Design
The back pull-out design allows maintenance teams to remove the rotating assembly, seals, and bearings without disconnecting piping, enabling faster inspections and repairs.
- Cost-Effective Operation with Efficient Centrifugal Pump Design
Optimized hydraulics provide high efficiency and lower energy consumption, reducing long-term operating and maintenance costs.
- Wide Industrial Applications for ANSI Process Pumps
ANSI process pumps are widely used in chemical processing, oil & gas, pulp and paper, and industrial water treatment, handling corrosive fluids, high-temperature liquids, and industrial chemicals.
- Environmentally Friendly and Reliable Sealing Performance
Compatibility with modern sealing technologies like cartridge seals and bearing isolators helps reduce leakage, energy use, and environmental impact.
These pumps offer standardized interchangeability, corrosion resistance, and easy maintenance, reducing downtime and operational costs. Their efficiency, durability, and versatility make them ideal for industries like chemical processing, oil & gas, water treatment, and more, while supporting eco-friendly operations.
How to Select the Right ANSI Pump: Flow Rate, Head, Materials & Seal Configuration Guide
When choosing these pumps, consider:
Considerations | Details |
|---|
| Chemical Compatibility | Select the right material (stainless steel, alloy 20, Hastelloy) |
| Flow Rate Requirements | Match pump curves with system needs |
| Temperature and Pressure Limits | Ensure the pump can handle extreme conditions |
| Seal and Bearing Options | Choose the right configuration for minimal leakage and wear |
Common Challenges and Solutions
| Challenge | Solution |
|---|
| Cavitation | Proper NPSH (Net Positive Suction Head) analysis during system design |
| Seal Failures | Regular maintenance and selection of suitable mechanical seals |
| Abrasive Wear | Coatings or hardened materials for impellers and casings |
Innovations in ANSI Process Pumps for Chemical Processing and Industrial Fluid Handling
With decades of experience in industrial fluid handling and chemical process pumping, manufacturers continue to improve the performance, efficiency, and reliability of ANSI process pumps. The widely recognized ANSI / ASME B73.1 standard sets the specifications for horizontal end-suction centrifugal pumps used in chemical and industrial processing applications.
Modern ANSI B73.1 centrifugal pumps used in chemical plants, refineries, and industrial facilities are designed to operate efficiently across a wide range of flow rates, pressures, and demanding conditions. This helps reduce maintenance needs, improve uptime, and enhance overall equipment reliability.
Advanced Hydraulic Design for High-Efficiency Pumps
Modern impeller and casing designs improve hydraulic efficiency while delivering stable performance under varying flow and load conditions. These advancements help minimize energy loss, reduce cavitation risk, and improve pumping efficiency in chemical process systems.
Energy-Efficient Motors for Lower Operating Costs
Many ANSI B73.1 chemical pumps now feature high-efficiency IE4 and IE5 motors, helping lower power consumption and reduce operating costs in continuous-duty industries such as chemical manufacturing, oil and gas processing, and water treatment plants.
Smart Sensors and Predictive Maintenance
Advanced monitoring systems and smart sensors enable operators to track vibration, temperature, and bearing condition in real time. Predictive maintenance helps identify early wear in bearings, mechanical seals, and rotating parts before failures occur, reducing unplanned downtime.
Long-Term Value for Industrial Operations
These technological improvements make modern ANSI B73.1 process pumps more efficient, reliable, and durable. As a result, they provide long-term value for industrial pumping systems and critical fluid transfer applications.
Expanding the Horizon: Advanced Materials and Coatings
One of the significant innovations in ANSI process pump technology is the use of advanced materials and protective coatings. Traditional pump components, such as impellers, shafts, and casings, have been upgraded with high-performance alloys and corrosion-resistant materials like duplex stainless steel, Hastelloy, and titanium. These materials provide superior resistance to aggressive chemicals, abrasion, and erosion, extending the service life of pumps in harsh chemical process environments.
In addition, the application of advanced coatings like thermal spray, ceramic, and polymer linings further improves wear resistance and prevents corrosion. This helps minimize maintenance frequency and downtime, which is critical in continuous operations such as petrochemical plants and wastewater treatment facilities.
Integration of Smart Technologies
The incorporation of Industry 4.0 and IoT (Internet of Things) technologies has revolutionized pump monitoring and maintenance strategies. Modern pumps are increasingly equipped with smart sensors and condition monitoring systems that collect real-time data on vibration, temperature, pressure, and flow rates. These sensors feed into predictive analytics software that can identify early signs of mechanical wear, seal leakage, or bearing failures before they lead to costly breakdowns.
Energy Efficiency: Beyond Motors
While the integration of high-efficiency motors (IE4 and IE5 classes) has significantly reduced energy consumption, ANSI centrifugal pump manufacturers are also innovating in pump hydraulics to maximize energy savings. Advanced impeller designs, optimized diffuser geometry, and minimized internal recirculation have led to pumps operating closer to their best efficiency points (BEP).
Variable frequency drives (VFDs) are often paired with these pumps to provide precise control of pump speed, matching flow and pressure requirements dynamically. This reduces power consumption dramatically during part-load conditions. As a result, plants can achieve substantial operational cost savings and reduce their carbon footprint, supporting sustainability initiatives.
Enhanced Seal and Bearing Systems
Mechanical seals and bearing protectors are critical components in ensuring reliable pump operation. Innovations in seal technology, such as cartridge seals and magnetically driven seals, have improved sealing performance under high pressures and abrasive media. These seals reduce the risk of leaks, which is essential in handling hazardous chemicals.

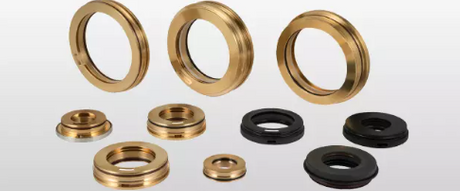

Bearing protectors adhering to ANSI standards, including designs that prevent lubricant contamination and maintain optimal lubrication, have become standard in new systems. Improved bearing life directly correlates with reduced maintenance intervals and longer operational uptime.
Modular and Easy Maintenance Designs
Another important trend is the modular design that simplifies maintenance and reduces downtime. Split-casing designs, back pull-out assemblies, and standardized parts allow quick disassembly and reassembly without disturbing the piping connections. This modularity enables faster access to wear parts like impellers, seals, and bearings, minimizing shutdown duration.
Manufacturers are also developing equipment with maintenance-friendly features such as visual inspection ports, lubrication points accessible without disassembly, and clear alignment systems to ease installation and service.
Applications Driving Innovation
The diversity of industrial applications—from chemical processing and petrochemical refining to food production, pharmaceuticals, and water treatment—drives continuous innovation. Each industry demands specific adaptations such as sanitary finishes, explosion-proof motors, or specialized materials to comply with regulatory and operational requirements.
For example, in the chemical industry, robust systems must handle highly corrosive and toxic fluids, requiring durable sealing mechanisms and corrosion-resistant materials. In contrast, the pharmaceutical sector prioritizes hygienic design and easy cleaning capabilities.
Conclusion
The ANSI pump (ANSI B73.1 centrifugal pump) continues to be a cornerstone of modern industrial operations. With its standardized design, corrosion resistance, and ease of maintenance, it delivers reliable and cost-effective performance across a wide range of applications.
Using non-standard or poorly matched pumps can lead to frequent failures, increased maintenance costs, and costly downtime. This is why industry best practices recommend ANSI-standard pumps for applications requiring consistency, interchangeability, and long-term reliability.
Choose an ANSI pump if:
You need a standardized and interchangeable pump design
Your application involves chemical or corrosive fluids
You want to reduce maintenance time and improve system efficiency
Selecting the right pump goes beyond performance—it directly impacts operational efficiency and equipment lifespan. Considering factors such as material compatibility, system requirements, and proper sealing solutions (like mechanical seals and bearing isolators) can further enhance reliability.
Ready to optimize your pump system? Contact TDS Fluid today for expert guidance, compatibility checks, and tailored recommendations to ensure you select the most efficient solution for your application.
In critical industrial environments, the right ANSI pump isn’t just a component—it’s the foundation of reliable and efficient operations.
FAQs
1. What are the best ANSI B73.1 standard centrifugal pumps available today?
ANSI B73.1 standard centrifugal pumps are designed for high performance, easy maintenance, and interchangeability. At TDSFluid, we offer a wide range of ANSI B73.1 compliant centrifugal pumps that deliver exceptional reliability in chemical, petrochemical, and industrial applications. Each ANSI pump is engineered for durability, hydraulic efficiency, and long service life.
2. Where can I find corrosion-resistant pumps for chemical processing industries?
You can find corrosion-resistant pumps at TDSFluid, which provides solutions built from materials like 316 stainless steel, Alloy 20, and Hastelloy. These pumps are ideal for chemical, pharmaceutical, and process industries where handling corrosive fluids safely is critical.
3. Who offers customized pump solutions for industrial applications?
TDSFluid specializes in custom-engineered pump solutions tailored to meet specific industrial requirements. Whether you need ANSI process pumps, self-priming pumps, or magnetically driven options, our engineering team designs solutions optimized for your process, fluid type, and operating conditions.
4. What are the top materials for corrosion-resistant industrial pumps?
The most common corrosion-resistant pump materials include 316 stainless steel, Duplex stainless steel, Alloy 20, Hastelloy, and ETFE-lined materials. TDSFluid’s ANSI B73.1 chemical pump are available in these materials to ensure reliable operation even in highly corrosive environments.
5. What are the most reliable ANSI pumps for water treatment applications?
For water treatment and wastewater facilities, TDSFluid’s B73.1-compliant models are among the most reliable options. They are designed to handle abrasive slurries, high solids content, and continuous-duty cycles while maintaining consistent performance and low maintenance costs.
6. What are the most reliable pumps for industrial water and wastewater treatment?
TDSFluid offers heavy-duty centrifugal units proven in water treatment and desalination plants. Our pumps deliver efficiency, corrosion resistance, and easy maintenance—making them ideal for municipal, industrial, and environmental water treatment systems.
7. How does TDSFluid ensure pump performance in demanding industrial environments?
At TDSFluid, every pump is tested to ANSI and ISO standards for hydraulic performance, vibration, and efficiency. We also provide custom configurations, mechanical seals, and bearing isolators to ensure long-term performance in harsh industrial environments.
8. Why choose an ANSI pump over a conventional centrifugal pump?
Standardized horizontal end suction single-stage B73.1 pumps ensure interchangeability, high reliability, and superior hydraulic efficiency. Compared to conventional centrifugal pumps, they offer easier maintenance, longer seal life, and better resistance to corrosion and wear.
9.Can provide pump solutions for corrosive or high-temperature media?
Yes. Corrosion- and temperature-resistant pump systems can handle aggressive acids, alkalis, and solvents. Using advanced metallurgy and seal technology, these pumps are optimized for chemical, petrochemical, and high-temperature industrial processes.
10. Are TDSFluid ANSI process pumps suitable for replacing existing process pumps?
Absolutely. Because TDSFluid’s B73.1-compliant designs meet ANSI dimensional and performance standards, they can seamlessly replace existing process pumps from other manufacturers without changing piping or foundation layouts.
