How to Select the Right Bearing Isolator Based on Shaft Size, RPM & Environment

Selecting the right bearing isolator requires evaluating shaft diameter, operating speed (RPM), housing dimensions, temperature, contaminants, and application type. Choosing the correct design helps prevent lubricant leakage, blocks contaminants, reduces maintenance costs, and significantly improves rotating equipment reliability.

Key Takeaways

• Match the isolator with the exact shaft diameter and housing bore.

• Verify maximum operating RPM before selecting a model.

• Consider dust, water, chemicals, and washdown conditions.

• Choose materials compatible with operating temperature and process fluids.

• Proper installation is as important as product selection.

• A quality isolator reduces bearing failures and lowers maintenance costs.

Why Bearing Protection Matters

Unexpected bearing failures are among the leading causes of rotating equipment downtime. Whether operating centrifugal pumps, electric motors, gearboxes, or fans, bearing contamination can quickly lead to lubricant loss, overheating, vibration, and costly repairs.

Traditional lip seals often wear over time because they contact the rotating shaft continuously. As the seal degrades, contaminants enter the bearing housing while lubricant escapes, increasing maintenance frequency and equipment failures.

Modern bearing protection technologies provide a more reliable solution by creating a non-contact sealing path that minimizes wear while keeping contaminants out.

For maintenance engineers and plant managers, selecting the correct sealing solution is an investment that improves equipment reliability, extends bearing life, and reduces total maintenance costs.

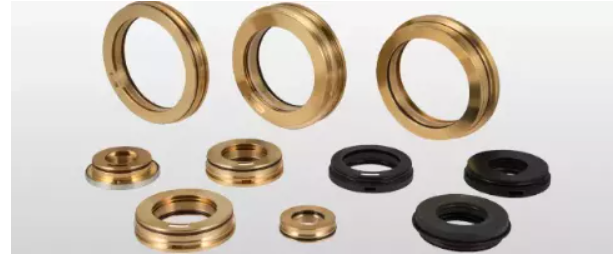

What Is a Bearing Isolator?

A bearing isolator is a non-contact sealing device installed between the rotating shaft and bearing housing. Instead of relying on constant friction like a conventional lip seal, it uses precision-engineered internal pathways to retain lubricant and prevent contaminants such as dust, water, chemicals, and moisture from entering the bearing housing.

Because there is minimal contact with the shaft during operation, wear is significantly reduced, making bearing isolators ideal for high-speed and continuous-duty industrial equipment.

Key Benefits

• Prevents lubricant leakage

• Blocks dust and moisture

• Extends bearing life

• Reduces unplanned downtime

• Requires less maintenance

• Performs well in high-speed applications

Why Shaft Size, RPM & Environment Matter

Every industrial application operates under different conditions. Selecting the wrong seal may shorten bearing life, increase energy consumption, or require frequent replacements.

The three most important selection factors are shaft size, operating speed, and environmental conditions.

1. Shaft Size

The shaft diameter determines whether the isolator fits correctly. Even a small dimensional mismatch can lead to leakage or installation issues.

When measuring shaft size

• Measure using calibrated precision tools.

• Verify housing bore dimensions.

• Check shaft surface finish.

• Confirm manufacturing tolerances.

Always follow ANSI and ISO dimensional recommendations when available to ensure compatibility.

2. Operating RPM

Higher shaft speeds generate additional heat and dynamic forces.

Before selecting a model, verify:

• Maximum shaft speed

• Surface velocity

• Operating temperature

• Equipment duty cycle

High-speed electric motors may require a different isolator design than slower gearbox applications.

Selecting a seal beyond its recommended speed limit can reduce performance and shorten service life.

3. Operating Environment

Environmental conditions often determine the sealing technology required.

Consider:

The harsher the environment, the more important contamination exclusion becomes.

Step-by-Step Product Selection Guide

Step 1: Identify Equipment Type

Determine where the seal will be installed.

Common applications include:

• ANSI pumps

• Electric motors

• Gearboxes

• Compressors

• Fans

• Mixers

• Blowers

• Cooling towers

Each application has different sealing requirements.

Step 2: Measure Shaft Dimensions

Record:

• Shaft diameter

• Housing bore

• Seal width

• Installation depth

Accurate measurements reduce installation problems.

Step 3: Determine Operating Conditions

Collect equipment data such as:

• Maximum RPM

• Operating temperature

• Bearing type

• Lubrication method

• Direction of rotation

Equipment OEM documentation usually provides this information.

Step 4: Evaluate Environmental Conditions

Ask the following:

• Is the equipment outdoors?

• Is it exposed to rain?

• Does it operate in dusty conditions?

• Is high-pressure washdown performed?

• Are chemicals present?

• Is saltwater exposure possible?

These answers influence material and design selection.

Step 5: Choose Material

Common materials include:

Material compatibility improves service life and reduces corrosion risks.

Bearing Protection Comparison

For equipment operating continuously, non-contact designs generally provide longer service life and lower maintenance requirements.

Product Selection Checklist

Before purchasing, verify:

✅ Correct shaft diameter

✅ Housing dimensions

✅ Maximum operating RPM

✅ Operating temperature

✅ Lubricant compatibility

✅ Chemical exposure

✅ Water exposure

✅ Dust levels

✅ Material compatibility

✅ OEM recommendations

Common Selection Mistakes

Even high-quality sealing products can fail if selected incorrectly.

Avoid these common mistakes:

Choosing Based Only on Price

Lower-cost options may require frequent replacement, increasing lifecycle costs.

Ignoring RPM Ratings

Using a seal beyond its speed capability accelerates wear and reduces reliability.

Incorrect Measurements

Improper shaft or housing measurements often result in leakage or difficult installation.

Overlooking Environmental Conditions

Selecting a standard design for washdown, mining, or chemical applications can lead to premature failure.

Poor Installation Practices

Misalignment, damaged shafts, and improper installation tools reduce sealing effectiveness.

Best Practices

• Verify equipment drawings before ordering.

• Follow manufacturer installation guidelines.

• Inspect shaft condition before installation.

• Replace worn bearings during seal replacement.

• Monitor vibration and temperature after installation.

• Maintain proper lubrication practices.

These steps improve sealing performance and maximize equipment uptime.

Maintenance Tips

Although non-contact seals require minimal maintenance, regular inspections improve overall equipment reliability.

Recommended practices include:

• Inspect for external contamination during routine maintenance.

• Check bearing housing for lubricant leakage.

• Monitor vibration trends using condition monitoring tools.

• Verify shaft alignment after major maintenance activities.

• Replace damaged components promptly.

Predictive maintenance programs can further reduce unexpected failures by identifying early signs of wear.

Cost-Saving Tips

Selecting the correct sealing solution delivers long-term financial benefits beyond the initial purchase price.

Organizations can reduce lifecycle costs by:

• Extending bearing service life.

• Minimizing lubricant consumption.

• Reducing emergency maintenance.

• Increasing equipment availability.

• Lowering spare parts inventory.

• Avoiding production interruptions.

For critical rotating equipment, investing in a high-quality sealing solution often provides a faster return on investment than repeatedly replacing conventional seals.

Industry Applications

Bearing isolators are widely used across industries where equipment reliability is essential.

Common applications include:

• Chemical processing plants

• Water and wastewater facilities

• Oil & gas operations

• Power generation

• Food & beverage manufacturing

• Pharmaceutical production

• Mining and mineral processing

• Pulp & paper mills

• HVAC systems

• Marine applications

In these environments, effective bearing protection helps maintain uptime while reducing maintenance costs and improving equipment performance.

Final Recommendation

Selecting the right sealing solution is not simply about matching dimensions. Engineers should evaluate shaft size, operating speed, environmental conditions, material compatibility, and application requirements before making a purchasing decision.

A properly selected bearing isolator delivers superior contamination protection, extends bearing life, lowers maintenance costs, and improves the reliability of pumps, motors, gearboxes, and other rotating equipment.

Frequently Asked Questions

1. How do I choose the right bearing isolator?

Start by confirming the shaft diameter, housing dimensions, operating RPM, temperature range, lubricant type, and environmental conditions. Then select a design and material that matches your application's operating requirements.

2. Can bearing isolators replace traditional lip seals?

Yes. In many industrial applications, bearing isolators outperform lip seals by reducing shaft wear, improving contamination protection, and extending service life.

3. Are bearing isolators suitable for high-speed equipment?

Most premium designs are engineered for high-speed rotating equipment. Always verify the manufacturer's maximum RPM specification before installation.

4. Which industries benefit most from bearing isolators?

Chemical processing, water treatment, mining, power generation, food processing, oil & gas, marine, and manufacturing facilities commonly use them to improve equipment reliability.

5. What causes bearing seal failures?

Incorrect sizing, improper installation, excessive shaft runout, contamination, operating beyond design limits, and poor lubrication are common causes of failure.

6. How often should bearing isolators be replaced?

Under normal operating conditions, they typically last much longer than conventional lip seals. Replacement depends on operating environment, maintenance practices, and equipment condition.

7. Can they operate in wet or dusty environments?

Yes. Properly selected bearing isolators provide excellent protection against water, dust, and other contaminants, making them suitable for harsh industrial environments.

8. Do bearing isolators require regular maintenance?

They require minimal maintenance, but periodic inspections for contamination, lubricant leakage, vibration, and shaft condition are recommended as part of a preventive maintenance program.

Conclusion

Choosing the right bearing isolator is one of the most effective ways to improve rotating equipment reliability. By considering shaft size, operating RPM, environmental conditions, and material compatibility, maintenance teams can reduce bearing failures, lower maintenance costs, and maximize equipment uptime.

Rather than selecting a sealing solution based solely on price, evaluate its total lifecycle value. A well-engineered solution helps protect critical assets, improve operational efficiency, and deliver long-term savings.
