TDS T1

Availability:
Quantity:


1

Replaces John Crane Type 1 (US Standard). Reemplaza al John Crane tipo 1 (Estandar USA)。


Operating Limits

Pressure:  ≤2.8MPa

Speed:  ≤13 m/s

Temperature:  -30℃~+200℃

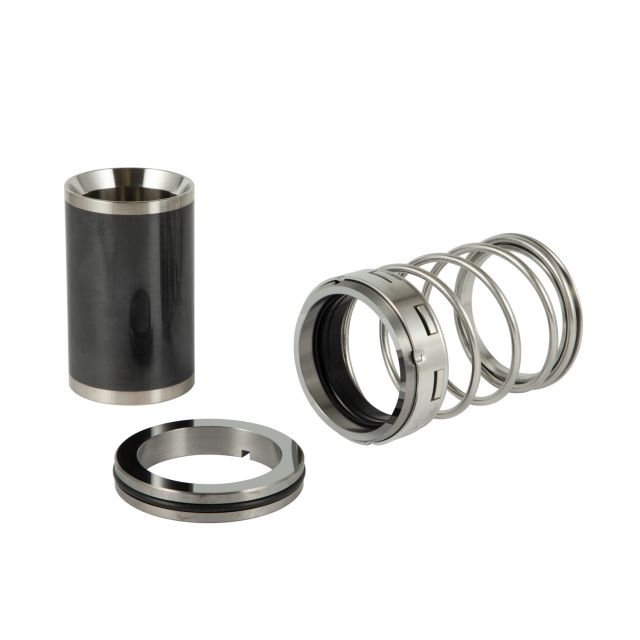

Rotary Ring (Carbon/SiC/TC)

Stationary Ring (Ceramic/SiC/TC/SUS304)

Secondary Ring (NBR/EPDM/VITON)

Spring & Other Parts (SUS304/SUS316)

1
