TDS Fluid Industries offers our customers a comprehensive set of services for the design, fabrication, and procurement of their mechanical seal and fluid system requirements.These seals are of many types (industrial pump mechanical seals,mixer and agitator seals,cartridge seals,metal bellows seals) for a large variety of industries (petroleum,chemical,refineries,paper making, pharmaceutical, food preparation,automotive,etc.).
Operating Limits
Pressure: ≤1.0MPa
Speed: ≤10m/s
Temperature: -30℃~+180℃
Límites de operación
Presión: ≤1.0MPa
Velocidad: ≤10m/s
Temperatura: -30℃~+180℃

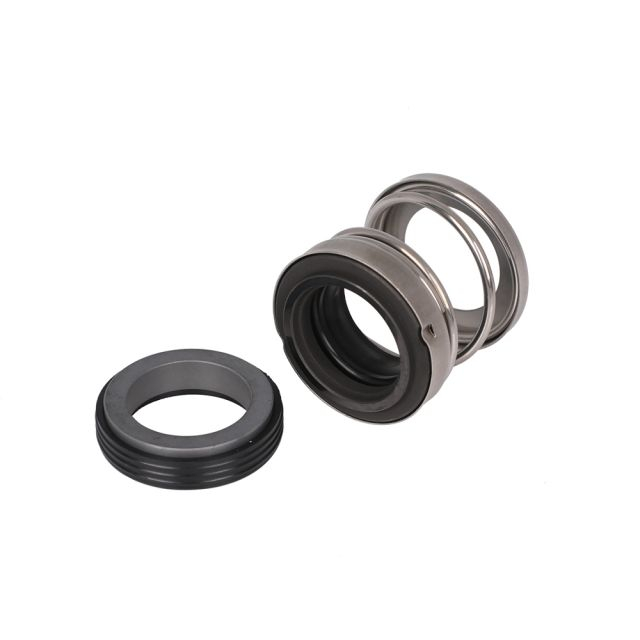

Rotary Ring (Carbon/SiC/TC)
Stationary Ring (Ceramic/SiC/TC)
Secondary Seal (NBR/VITON/EPDM)
Spring & Other Parts (SUS304/SUS316)
Anillo giratorio (Carbono/SiC/TC)
Anillo estacionario (Cerámica/ SiC/TC)
Sellomecánico secundario (NBR/EPDM/VITóN) Resorte y otras piezas (SUS304/SUS316)
Model Modelo | d1 | d3 | d7 | l1 | l3 |
TSMG912-20 | 20 | 32 | 35 | 37.5 | 7.5 |
TSMG912-22 | 22 | 33.5 | 37 | 37.5 | 7.5 |
TSMG912-24 | 24 | 37 | 39 | 40 | 7.5 |
TSMG912-25 | 25 | 38 | 40 | 40 | 7.5 |
TSMG912-28 | 28 | 41 | 43 | 42.5 | 7.5 |
TSMG912-30 | 30 | 43 | 45 | 42.5 | 7.5 |
TSMG912-32 | 32 | 45 | 48 | 42.5 | 7.5 |
TSMG912-33 | 33 | 46 | 48 | 42.5 | 7.5 |
TSMG912-35 | 35 | 48 | 50 | 42.5 | 7.5 |
TSMG912-38 | 38 | 52.5 | 56 | 45 | 9 |
TSMG912-40 | 40 | 55.5 | 58 | 45 | 9 |
TSMG912-45 | 45 | 60.5 | 63 | 45 | 9 |
TSMG912-48 | 48 | 64 | 66 | 45 | 9 |
TSMG912-50 | 50 | 66 | 70 | 47.5 | 9.5 |
TSMG912-53 | 53 | 69 | 73 | 47.5 | 11 |
TSMG912-55 | 55 | 71 | 75 | 47.5 | 11 |
TSMG901-1 1/8'' | 28.575 | 41 | 44.45 | 52.37 | 11.1 |
TSMG901-1 3/8'' | 34.925 | 48 | 50.8 | 53.95 | 11.1 |
TSMG901-1 1/2'' | 38.1 | 52.5 | 54 | 53.95 | 11.1 |
TSMG901-1 3/4'' | 44.45 | 60.5 | 63.5 | 63.5 | 12.7 |
